System Design Notes

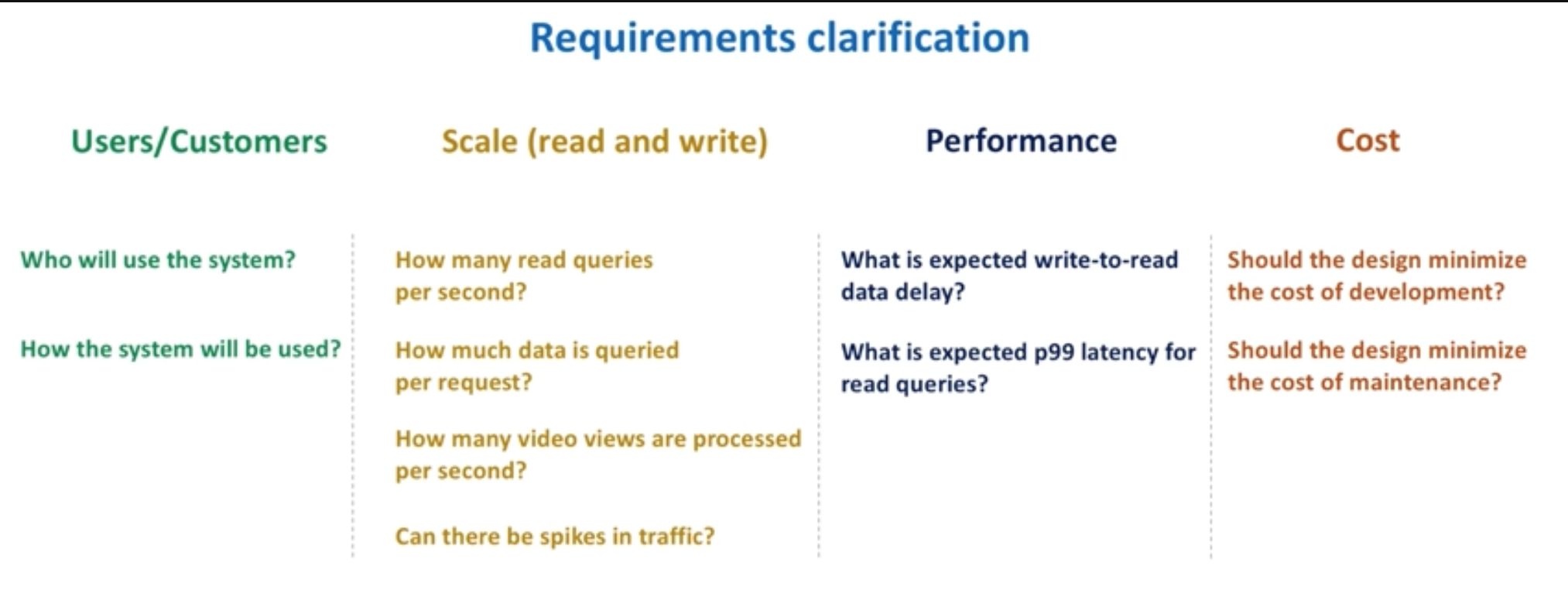

Questions to think about when starting to tickle down a system design problem:

Coming up with non-functional requirements can be challenging, especially if you’re not familiar with the domain. Here is a checklist of things to consider that might help you identify the most important non-functional requirements for your system. You’ll want to identify the top 3-5 that are most relevant to your system.

• CAP Theorem: Should your system prioritize consistency or availability? Note, partition tolerance is a given in distributed systems.
• Environment Constraints: Are there any constraints on the environment in which your system will run? For example, are you running on a mobile device with limited battery life? Running on devices with limited memory or limited bandwidth (e.g. streaming video on 3G)?
• Scalability: All systems need to scale, but does this system have unique scaling requirements? For example, does it have bursty traffic at a specific time of day? Are there events, like holidays, that will cause a significant increase in traffic? Also consider the read vs write ratio here. Does your system need to scale reads or writes more?
• Latency: How quickly does the system need to respond to user requests? Specifically consider any requests that require meaningful computation. For example, low latency search when designing Yelp.
• Durability: How important is it that the data in your system is not lost? For example, a social network might be able to tolerate some data loss, but a banking system cannot.
• Security: How secure does the system need to be? Consider data protection, access control, and compliance with regulations.
• Fault Tolerance: How well does the system need to handle failures? Consider redundancy, failover, and recovery mechanisms.
• Compliance: Are there legal or regulatory requirements the system needs to meet? Consider industry standards, data protection laws, and other regulations.

Notes:

• The reality is that you need a load balancer wherever you have multiple machines capable of handling the same request. However, in an interview, it can be redundant to draw a load balancer in front of every service. Instead, either omit a load balancer from your design altogether (and just mention that the services are horizontally scaled) or add one only to the front of the design as an abstraction.

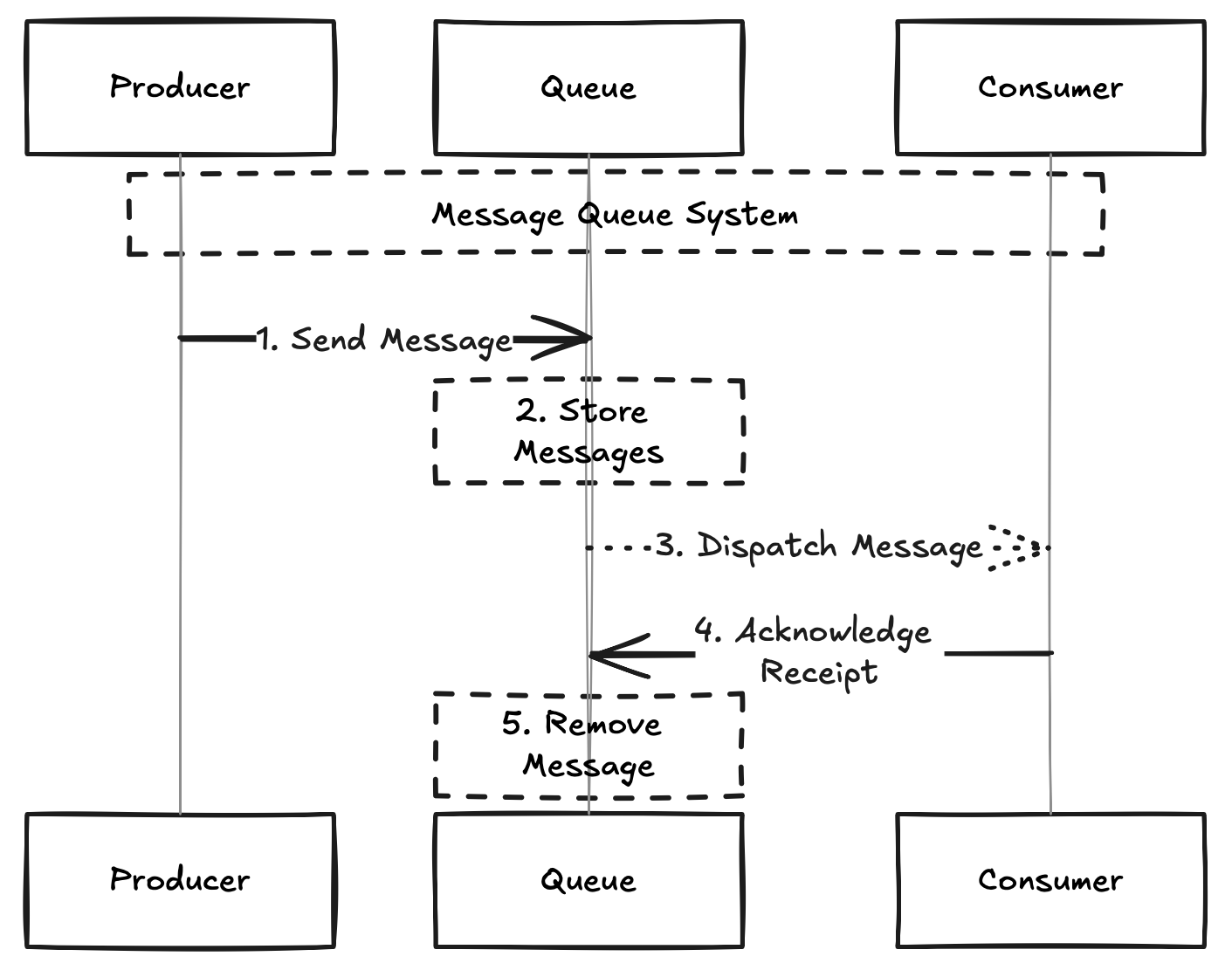

• A message queue system usually works like follows:



  • Message Ordering: Most queues are FIFO (first in, first out), meaning that messages are processed in the order they were received. However, some queues (like Kafka) allow for more complex ordering guarantees, such as ordering based on a specified priority or time.
  • Retry Mechanisms: Many queues have built-in retry mechanisms that attempt to redeliver a message a certain number of times before considering it a failure. You can configure retries, including the delay between attempts, and the maximum number of attempts.
  • Dead Letter Queues: Dead letter queues are used to store messages that cannot be processed. They’re useful for debugging and auditing, as it allows you to inspect messages that failed to be processed and understand why they failed.
  • Scaling with Partitions: Queues can be partitioned across multiple servers so that they can scale to handle more messages. Each partition can be processed by a different set of workers. Just like databases, you will need to specify a partition key to ensure that related messages are stored in the same partition.
  • Backpressure: The biggest problem with queues is they make it easy to overwhelm your system. If my system supports 200 requests per second but I’m receiving 300 requests per second, I’ll never finish them! A queue is just obscuring the problem that I don’t have enough capacity. The answer is backpressure. Backpressure is a way of slowing down the production of messages when the queue is overwhelmed. This helps prevent the queue from becoming a bottleneck in your system. For example, if a queue is full, you might want to reject new messages or slow down the rate at which new messages are accepted, potentially returning an error to the user or producer.
